NEXUS 600W SOLAR PANEL HALFCUT
₦56000.00
₦71000.0021% offsize
Quantity

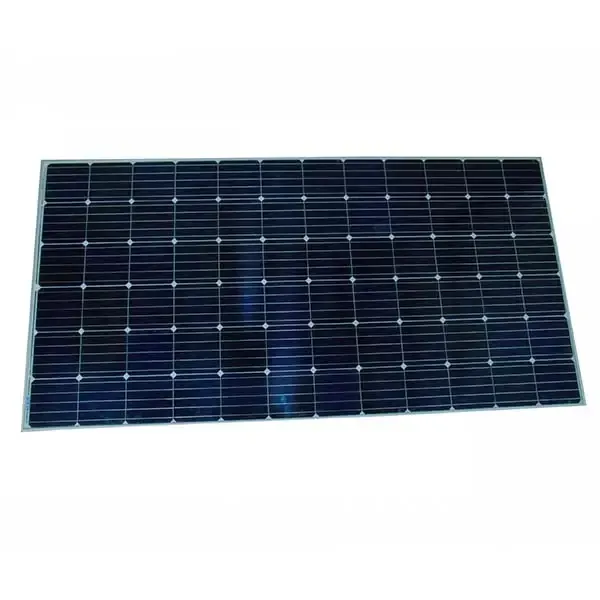

Nexus 600W Half-Cut Solar Panel
Power your home or business with the Nexus 600W Half-Cut Solar Panel, built for high performance and reliability. Using advanced half-cut monocrystalline technology, this panel delivers superior efficiency, reduced energy loss, and consistent power even under low-light or shaded conditions.
With a sleek yet durable design, the Nexus 600W panel features strong tempered glass and a corrosion-resistant aluminum frame, making it resistant to harsh weather, heat, and heavy rain. It’s built to last with a lifespan of 25+ years, ensuring you get maximum value for your investment.
Key Features of Nexus 600W Half-Cut Solar Panel
High Power Output: Generates up to 600W for homes, businesses, and commercial projects.
Half-Cut Cell Technology: Delivers higher efficiency and better performance under shading.
Durable Build: Strong tempered glass + corrosion-resistant aluminum frame.
Weather Resistant: IP68 junction box, built to withstand heat, rain, and harsh conditions.
Long Lifespan: 25+ years of reliable energy production with strong warranty.
Smart Investment: Cuts electricity bills and supports clean, renewable energy.
Category | Details |
|---|---|
Rated Power (Pmax) | 600W |
Cell Type | Monocrystalline, Half-Cut |
Module Efficiency | ~21% |
Voltage at Max Power (Vmp) | ~41V (±3%) |
Current at Max Power (Imp) | ~14.6A (±3%) |
Open Circuit Voltage (Voc) | ~49V |
Short Circuit Current (Isc) | ~15.5A |
Dimensions (L × W × H) | 227.8 × 113.4 × 3.5 cm |
Weight | 29 kg |
Front Cover | High-transparency tempered glass |
Frame | Anodized aluminum alloy (corrosion-resistant) |
Junction Box | IP68, weatherproof with bypass diodes |
Connector Type | MC4 compatible |
Operating Temperature | -40°C to +85°C |
Maximum System Voltage | 1500V DC |
Power Tolerance | 0 ~ +3% |
Maximum Series Fuse Rating | 20A |
Fire Safety Class | Class C |
Wind Load Resistance | 2400 Pa |
Snow Load Resistance | 5400 Pa |
Product Warranty | 12 years |
Performance Warranty | 25 years (80% output guarantee) |
